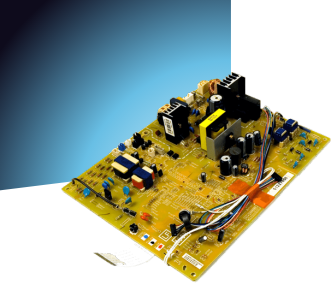

Logic Boards

Depot International utilizes certified engineers and technicians, calibrated test equipment, as well as static and dynamic testing at the component and assembly level.

Depot International uses a state-of-the art vision system for the removal and replacement of Ball Grid Array (BGA) microchips. BGA microchips are found in the latest printer and copier models on the market, including Jet Direct Cards and Formatter Boards. Depot International's equipment ensures no damage is done to the boards or its components resulting in savings for Depot International's customers.

DEPOT INTERNATIONAL ADVANTAGE:

  • Printer circuit board repairs and modifications
  • Component level troubleshooting
  • Capability to replace surface mount and through hole components
  • EC upgrades
  • State-of-the-art BGA removal and replacement

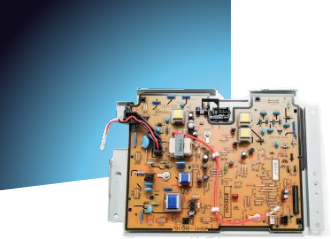

Power Supplies

Power supplies are live tested in fixtures for proper output voltage and current. Test capabilities include static and dynamic load testing, over-voltage protection, short circuit protection, and line and load regulation. Power supplies are adjusted to manufacturers' specifications for output voltage and current limiting. All repaired power supplies are 100% machine tested to ensure reliability.

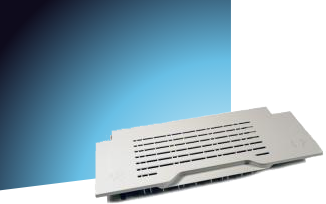

Paper Feed Mechanisms

Our paper feed mechanisms are refurbished with new rollers. Any other high wear parts that do not meet Depot International's rigorous quality standards are also replaced.

Scanners

The scanning assembly takes a digital image and prepares it for the printing process. All Depot International remanufactured scanners receive extensive cleaning and performance testing to ensure quality image transfers.

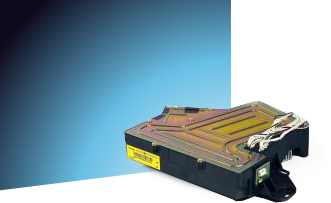

Printheads & Modules

The printhead repair process includes a thorough cleaning, replacement of pins, hammers, coils, guides and jewels as required. Next, they are adjusted for flight time, impact energy and alignment. Lastly, each printhead undergoes a thorough testing procedure before it leaves our facility. Our extensive range of test equipment and electronic simulators allows us to reproduce the most demanding conditions that occur in the field.

The Technical Resource Center

Find service manuals, diagrams, firmware instructions and other reference tools for a large assortment of printers from brands like HP, Brother and Lexmark all in one location.
